Manton Series 3 (7/16" X .120" Wall) Pushrod Upgrade Kit, 2025-2026 6.7L Cummins

Manton 2025-2026 6.7L 24V Cummins Hydraulic Pushrods Series 3


Specs:
Length: 10.160" in Over All Length
Diameter: 7/16"

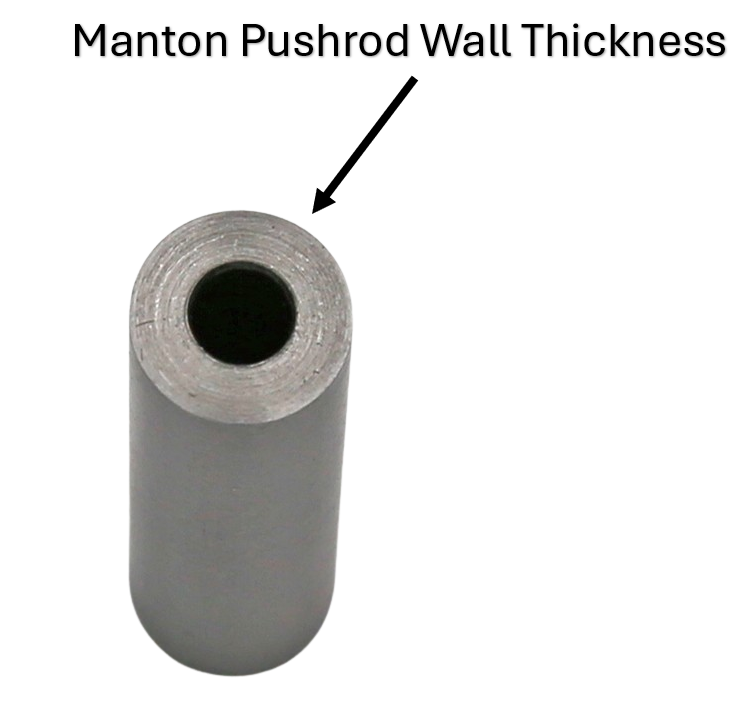

Wall Thickness: .120"
Tips: 10mm Ball, 10mm Ball, N/Oil
Fits: 2025 to Current 24V Cummins

Upgrade your 24v Cummins Pushrods for improved strength and stability in the valve train system. Stock 3/8 diameter pushrods, nearly 11.5 inches long, lack sufficient strength beyond stock use. OEM pushrods can’t handle increased stress from the valve train’s additional load.

We offer 3/8 and 7/16 diameter 3-piece pushrods crafted from 4130/4135 seamless Chromoly tubing. Featuring billet steel tip ends CNC machined from 86L20 bar stock, they provide enhanced impact and wear resistance. These materials and treatments extend pushrod service life and boost overall valve train performance.

Our engineering versatility ensures we enhance your engine’s specific needs with optimal pushrod design. Increasing tubing diameter from 3/8 to 7/16 spreads loads over a larger surface area, preventing binding with cylinder head ports. This larger diameter offers nearly twice the loading capacity before pushrod deflection, making 7/16 diameter ideal for all Cummins engines.

For competition engines, we recommend upgrading to our Series 5 pushrods. They offer 105,000 p.s.i. tensile strength above Series 3, ensuring precise valve timing and surge resistance. Trusted in top motorsports, Series 5 pushrods are the strongest chromoly pushrods available.

Ensure proper pushrod length with our length checking tools, maintaining stock rocker geometry and valve bridge contact. Correct length prevents issues with rocker arm ratios and valve lift. Pushrods are crucial for valve train performance and durability, often overlooked.


Includes:

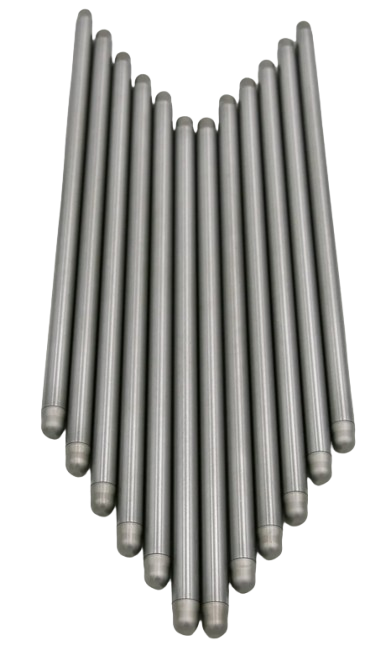

➡ Manton Series 3 Pushrods (Set Of 12) D-305-HYDV2-24V-12


Features:

➡ For Use With Factory Hydraulic Lifters Only
➡ Direct-Fit Replacement As An Upgrade
➡ Maintains Factory Fit & Performance
➡ Constructed From High Quality Materials
➡ Lifter Bleeding Procedure Can Be Found On This Page, In The Instructions Section

Installation Notes:

➡ FOLLOW OEM LIFTER BLEEDING PROCEDURE, FAILURE TO DO SO WILL CAUSE ENGINE DAMAGE
➡ Lube The Trunnions, Rockers Shaft Bore And Rocker Cups/Socket Heavily With Clevite Or Driven Assembly Lube Upon Installation
➡ We Recommend Using Schaeffer's 9000 Series 5W40 Diesel Engine Oil
